Bratley's Algoritm Simulator

Created by Brendan College for EEE 4775 Real-time Systems.

Description

This repository contains an implementation and a simulator of Bratley's scheduling algorithm using only standard libraries (std=C++20). This repository was created for my EEE 4775 Real-time Systems course at the University of Central Florida.

Usage a Simulator

Clone this repository into your desired directory and cd into the project's directory,

git clone https://github.com/myhe01/bratleys.git
cd bratleys

Create the project using make.

make

Finally, you're able to run the simulator with the below command and its arguments.

./bratleys NUM_JOBS [-a minarrival] [-A maxarrival] [-c mincomp] [-C maxcomp] [-d mindeadline] [-D maxdeadline] [-i inputfile] [-s seed]

Arguments

• NUM_JOBS is a positive integer specifying the number of jobs the user wishes to create (not used when specifying an input file)

Options

• -a allows the user to set the minimum arrival time of any one job by replacing minarrival with a positive integer
• -A allows the user to set the maximum arrival time of any one job by replacing maxarrival with a positive integer
• -c allows the user to set the minimum computation time of any one job by replacing mincomp with a positive integer
• -C allows the user to set the maximum computation time of any one job by replacing maxcomp with a positive integer
• -d allows the user to set the minimum absolute deadline of any one job by replacing mindeadline with a positive integer
• -D allows the user to set the maximum absolute deadline of any one job by replacing maxdeadline with a positive integer
• -i allows the user to specify an input file
• -s allows the user to set the seed of the random number generator by replacing seed with a positive integer

Defaults

If specific options are not specified, they will default to the following values

Option	Variable	Default Value
-a	minarrival	0
-A	maxarrival	INT_MAX
-c	mincomp	0
-C	maxcomp	INT_MAX
-d	mindeadline	0
-D	maxdeadline	INT_MAX
-s	seed	Current Unix time (seconds)

Considerations

Attempting to perform an exhaustive search for a feasible schedule with large numbers of NUM_JOBS ($n \gtrsim 20$) results in the program allocating large amounts of memory and taking a long time to finish execution. Caution should be taken when deciding which arguments to pass to the program.

Execution times and memory allocation were measured for the following options: -A5 -c1 -C3 -d4 -D15 -s6969

NUM_JOBS	Memory allocated (MB)	Execution time (s)
20	849.09	4.562
21	1,535.88	7.818
22	2,251.89	11.563
23	3,357.87	16.556
24	4,663.83	23.042
25	19,638.66	103.091
26	34,714.62	182.392
27	45,201.29	236.625
28	n/a	253.706

Specifying an Input File

If the user wishes to specify an input file, a readable file must be located in the directory of the compiled program. If the -i option is passed to specify an input file, NUM_JOBS must not be specified.

Each nonempty line in the input file represents one job to be scheduled. Each line must have comma-seperated values representing the arrival time, computation time, and deadline (in that order).

For example, if the user wishes to schedule the following jobs:

	$J_0$	$J_1$	$J_2$
$a_i$	0	1	3
$C_i$	2	3	5
$d_i$	3	7	14

The input file (e.g. named input.txt) would contain the following:

0,2,3
1,3,7
3,5,14

And the user would pass the following arguments

./bratleys -i input.txt

It is up to the user to specify which and how many jobs they wish to create (see considerations). Any other options passed are irrelevant, as the jobs to be scheduled are not randomly generated.

Usage As a Library

Code may be used in accordance with the license.

Topic	Code	Header
main	main.cpp	n/a
Job	job.cpp	job.hh
Node	node.cpp	node.hh
Tree	tree.cpp	tree.hh

To-do List

• Documentation ✔️
  • Complete To-do List ✔️

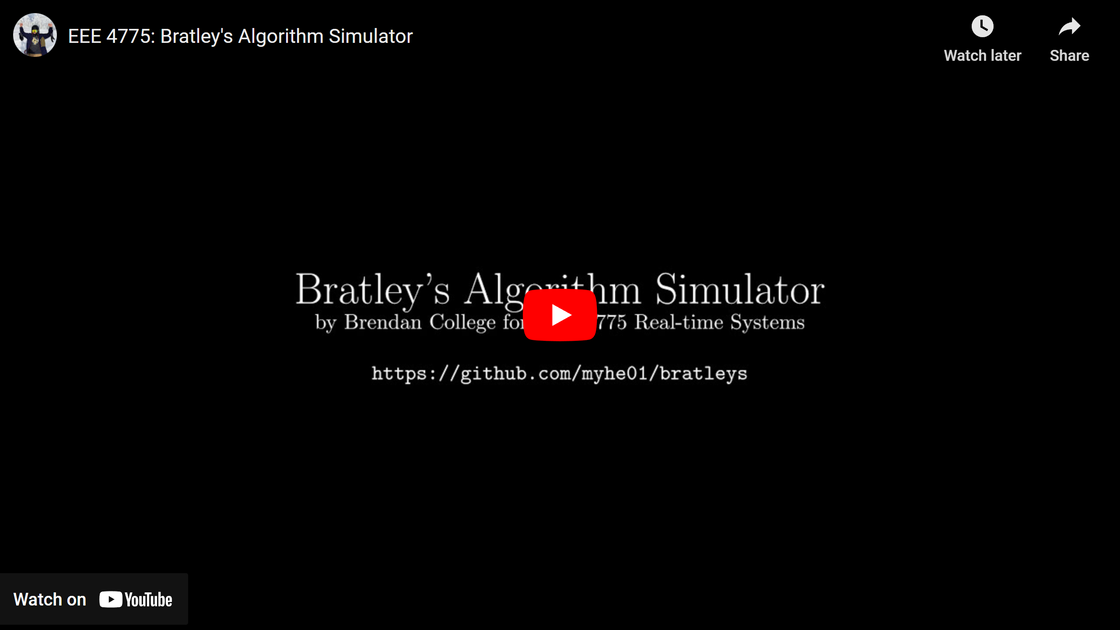

  • Complete video demonstration ✔️
• main ✔️
  • Parse user arguments ✔️
  • Check arguments for compatibility and correctness ✔️
  • Limit arrival times, computation time, and deadlines ✔️
  • Create list of random Jobs based on user arguments ✔️
  • Create Tree with empty root ✔️
  • Determine realizable schedule ✔️
    • Print schedule if realizable ✔️
      • Determine overall finishing time ✔️
    • Tell user if no realizable schedule exists ✔️
  • Measure execution time ✔️
  • Allow the user to input a list of predetermined jobs ✔️
• Job ✔️
  • Constructor ✔️
  • Getters and setters ✔️
  • Parse for an ostream ✔️
• Node ✔️
  • Constructor ✔️
  • Getters and setters ✔️
  • Parse for an ostream ✔️
  • getJobTaskNumber() ✔️
  • getJobArrivalTime() ✔️
  • getJobComputationTime() ✔️
  • getJobDeadline() ✔️
• Tree ✔️
  • Constructor ✔️
  • Getters and setters ✔️
  • runScheduler() (abstract start of scheduling algorithm) ✔️
  • scheduleJobs() (recursive scheduling algorithm) ✔️
    • Receive list of Nodes ✔️
    • Construct next Node, check if next Node's finish time exceeds deadline ✔️
      • If $f_i > d_i$, deconstruct the Node and try the next Job from the list ✔️
        • If list of Jobs exhausted, return up to the parent Node ✔️
      • Else continue until list of Nodes is exhausted ✔️
    • Return realizable schedule ✔️

Contributing

Issues are welcome, but pull requests will not be considered. This repository is being built as a class project.
