Size CSS border-radius by the CSS box model (#5454)#5469
Conversation
A stylesheet rule such as
btnSend { border-radius: 0mm 3mm 3mm 0mm; padding: 0.6mm 4mm; }
started rendering a much taller button in 7.0.260 than in 7.0.233.
Cause: PR #5054 (JS port native themes) added a branch to
CSSTheme.getThemeBorder that prefers RoundRectBorder over CSSBorder for
the simple border-radius case, so this rule switched border classes.
RoundRectBorder.getMinimumHeight() reports twice the corner radius and
DefaultLookAndFeel maxes the preferred height against it, so a 3mm
radius forced a >=6mm tall button regardless of padding and font size.
CSSBorder has no such floor. That floor is deliberate for hand written
borders (it guarantees a pill), but it is not CSS: there border-radius
never contributes to the size of the box.
Rather than revert the border choice, which the JS port needs, this adds
an opt-in sizing mode:
- RoundRectBorder.cssBoxModel(boolean). When set, the border reserves no
space for the radius, only for a shadow it actually draws. Off by
default, so hand written borders and the designer are unaffected.
- createShape now applies the CSS corner overlap rule, scaling the radius
down when the corners do not fit. Per edge, so a shape with only its
right corners rounded may use the full height rather than half of it.
Previously the path could fold over itself once a component was smaller
than the radius, which the CSS mode makes reachable.
- The CSS compiler sets the flag on every border it generates.
- Resource format 1.16 carries the flag. A 1.15 or older .res reads as
legacy, so existing themes keep their current sizing.
- Sheet.updateBorderForPosition clones RoundRectBorder field by field and
now carries the flag across.
The regenerated native themes are exactly one byte larger per
RoundRectBorder (70 in the iOS theme, 60 in the Material theme) with no
other content change. Touching the theme CSS runs the native theme
fidelity suite on this PR so the new sizing is measured against the real
OS widgets on both platforms.
Tests: border sizing and corner scaling in BorderAndPlafTest, the
reported CSS compiling to a flagged border in CSSThemeBorderRadiusTest,
and .res round-trip plus 1.15 backward compatibility in
RoundRectBorderCssBoxModelResourceTest.
Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
There was a problem hiding this comment.
Pull request overview
Note
Copilot couldn't run its full agentic review because it didn't start before the timeout. Make sure your repository has a runner available, or add a copilot-code-review.yml file specifying one with the runs-on attribute. See the docs for more details.
Fixes a regression where CSS border-radius unintentionally inflated component preferred size by introducing an opt-in “CSS box model” sizing mode for RoundRectBorder, ensuring radii don’t contribute to layout size while preserving legacy behavior for handwritten/designer borders.
Changes:
- Add
RoundRectBorder.cssBoxModel(boolean)and persist it through CSS compilation, resource IO (format 1.16), XML, andSheetborder cloning. - Implement CSS corner-overlap radius scaling in
RoundRectBorder.createShape()to prevent self-intersecting paths on small components. - Add/extend unit tests and update docs/native theme comments to document the new sizing behavior.
Reviewed changes
Copilot reviewed 12 out of 16 changed files in this pull request and generated 3 comments.
Show a summary per file
| File | Description |
|---|---|
| native-themes/ios-modern/theme.css | Documents CSS border-radius sizing expectations for the native iOS theme CSS. |
| native-themes/android-material/theme.css | Documents CSS border-radius sizing expectations for the native Material theme CSS. |
| maven/css-compiler/src/main/java/com/codename1/ui/util/xml/Border.java | Adds XML-model field + getter/setter for cssBoxModel. |
| maven/css-compiler/src/main/java/com/codename1/ui/util/EditableResources.java | Bumps resource minor version to 1.16; writes/reads cssBoxModel in XML + binary border serialization. |
| maven/css-compiler/src/main/java/com/codename1/designer/css/CSSTheme.java | Ensures CSS-compiled RoundRectBorder enables cssBoxModel(true). |
| maven/core-unittests/src/test/java/com/codename1/ui/util/RoundRectBorderCssBoxModelResourceTest.java | Adds resource round-trip tests for new flag and legacy behavior. |
| maven/core-unittests/src/test/java/com/codename1/ui/plaf/BorderAndPlafTest.java | Adds behavioral tests for legacy vs CSS sizing and radius scaling behavior. |
| maven/core-unittests/src/test/java/com/codename1/designer/css/CSSThemeBorderRadiusTest.java | Adds build-time tests ensuring CSS compiles to the correct border type/flag. |
| docs/developer-guide/css.asciidoc | Documents that CSS border-radius doesn’t affect box size and scales down to fit. |
| CodenameOne/src/com/codename1/ui/util/Resources.java | Reads cssBoxModel from resource format 1.16+ for RoundRectBorder. |
| CodenameOne/src/com/codename1/ui/plaf/RoundRectBorder.java | Implements cssBoxModel sizing + radius scaling; updates minimum size calculation accordingly. |
| CodenameOne/src/com/codename1/ui/Sheet.java | Preserves cssBoxModel when cloning borders for sheet position. |
💡 Add Copilot custom instructions for smarter, more guided reviews. Learn how to get started.
| // Any radius bigger than the button itself, so the legacy reservation is the value | ||
| // that wins in the preferred size calculation and the difference is visible here. | ||
| float radius = expected; | ||
| assertTrue(rightRoundedCorners(radius).getMinimumHeight() > expected, | ||
| "test setup: the radius has to exceed the natural height of the button"); | ||
|
|
||
| Button cssRounded = new Button("Send"); | ||
| cssRounded.getAllStyles().setBorder(rightRoundedCorners(radius).cssBoxModel(true)); |
| radius = scaleRadiusToFit(radius, widthF, heightF, | ||
| roundTopLeft, roundTopRight, roundBottomLeft, roundBottomRight); |
| private int minimumSize() { | ||
| if (cssBoxModel) { | ||
| if (shadowOpacity <= 0) { | ||
| return 0; | ||
| } | ||
| return Display.getInstance().convertToPixels(shadowSpread); | ||
| } |
|
Developer Guide build artifacts are available for download from this workflow run:
Developer Guide quality checks: |
Microsoft.Contractions wants "that's"; rewording without the relative clause reads better than the contraction. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
| File f = File.createTempFile("cn1-test-", ".css"); | ||
| f.deleteOnExit(); | ||
| FileWriter w = new FileWriter(f); | ||
| try { | ||
| w.write(css); | ||
| } finally { | ||
| w.close(); | ||
| } |
| // Any radius bigger than the button itself, so the legacy reservation is the value | ||
| // that wins in the preferred size calculation and the difference is visible here. | ||
| float radius = expected; | ||
| assertTrue(rightRoundedCorners(radius).getMinimumHeight() > expected, | ||
| "test setup: the radius has to exceed the natural height of the button"); | ||
|
|
||
| Button cssRounded = new Button("Send"); | ||
| cssRounded.getAllStyles().setBorder(rightRoundedCorners(radius).cssBoxModel(true)); |
Cloudflare Preview
|

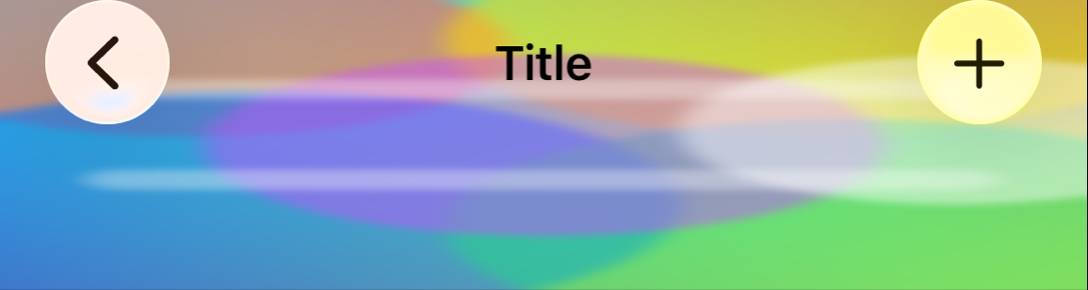

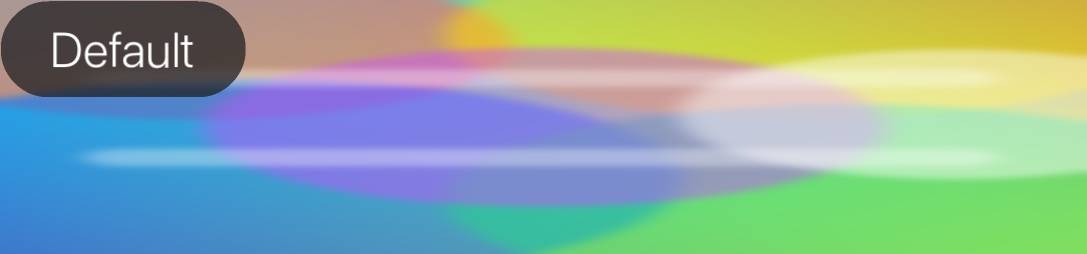

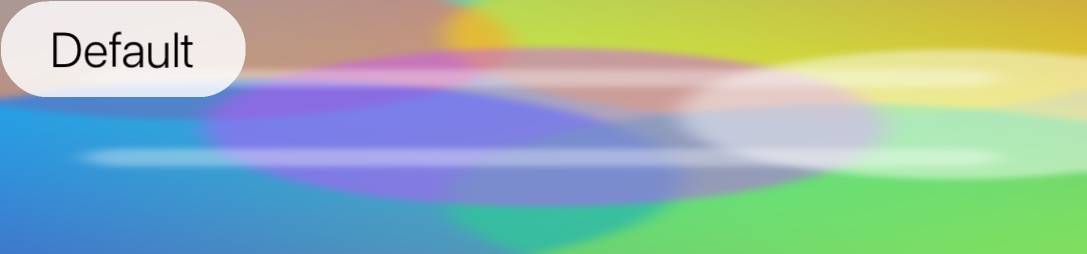

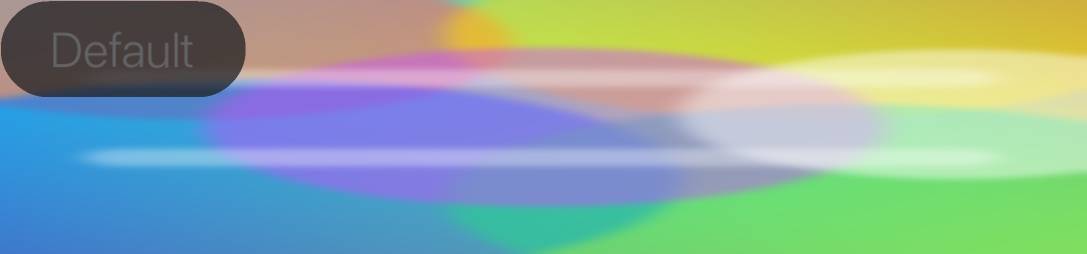

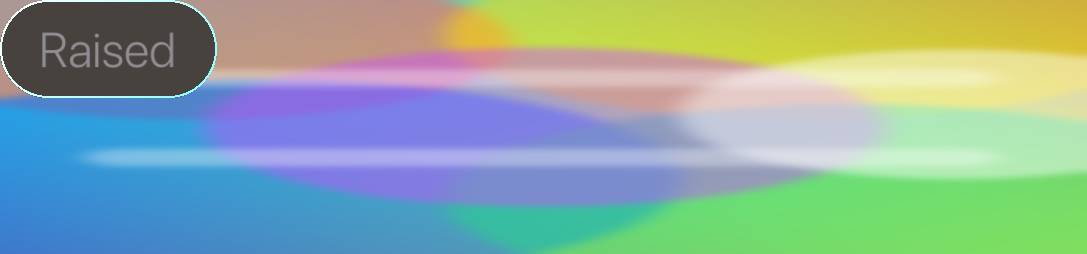

Native fidelity (Android, Material 3)54 pairs compared -- median 95.6%, worst 91.3% ( Distribution --
Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score
Side-by-side comparisons (worst first)
|
JavaScript port screenshot updatesCompared 181 screenshots: 177 matched, 4 updated.
|
✅ Continuous Quality ReportTest & Coverage
Static Analysis
Generated automatically by the PR CI workflow. |
Mac native screenshot updatesCompared 148 screenshots: 145 matched, 3 updated.
Benchmark Results
Detailed Performance Metrics
|

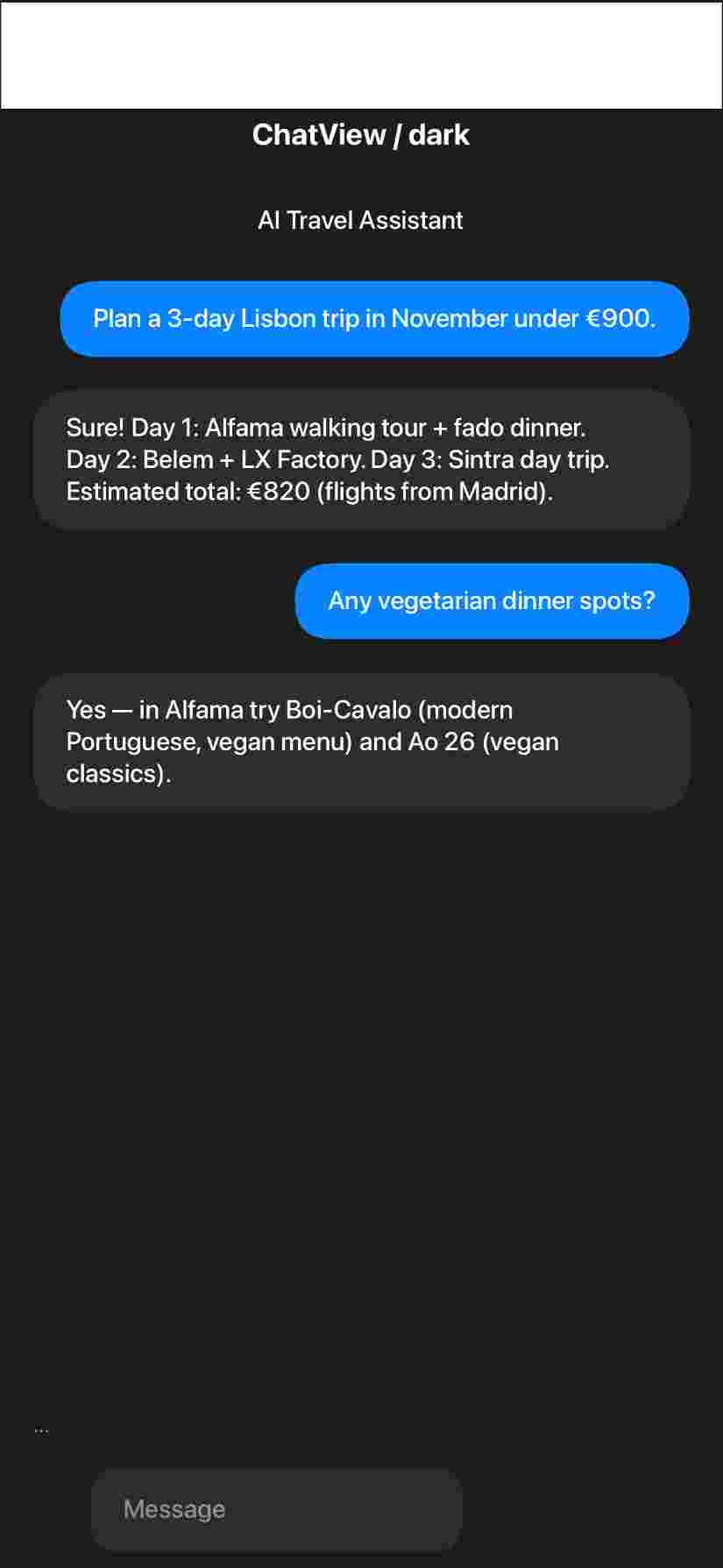

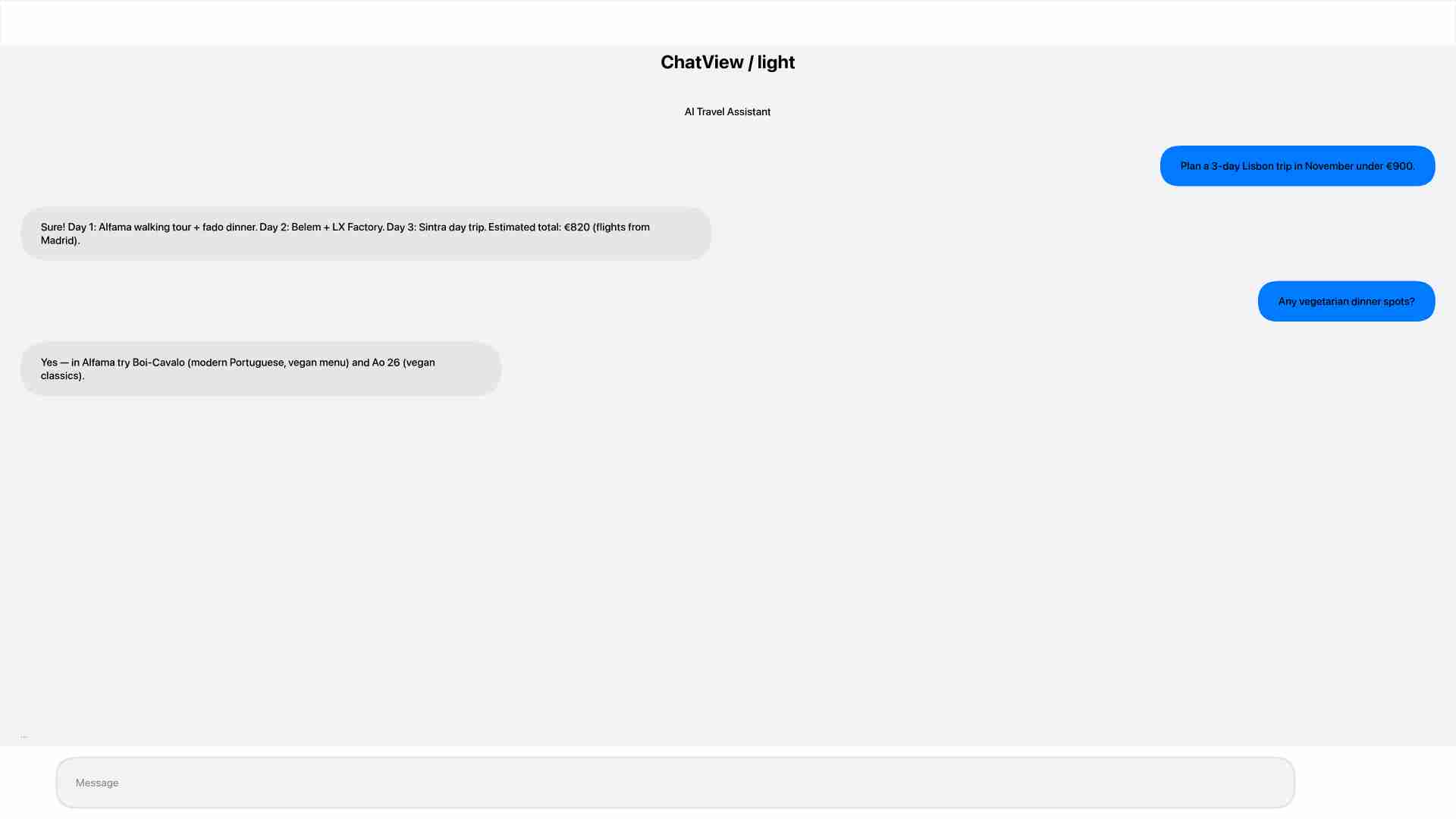

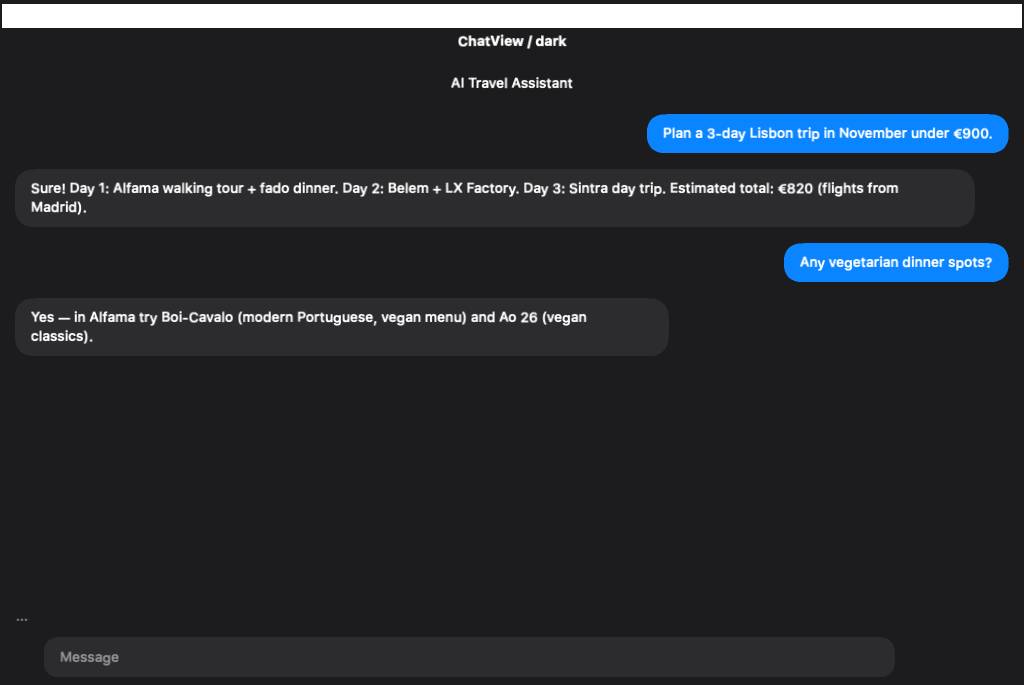

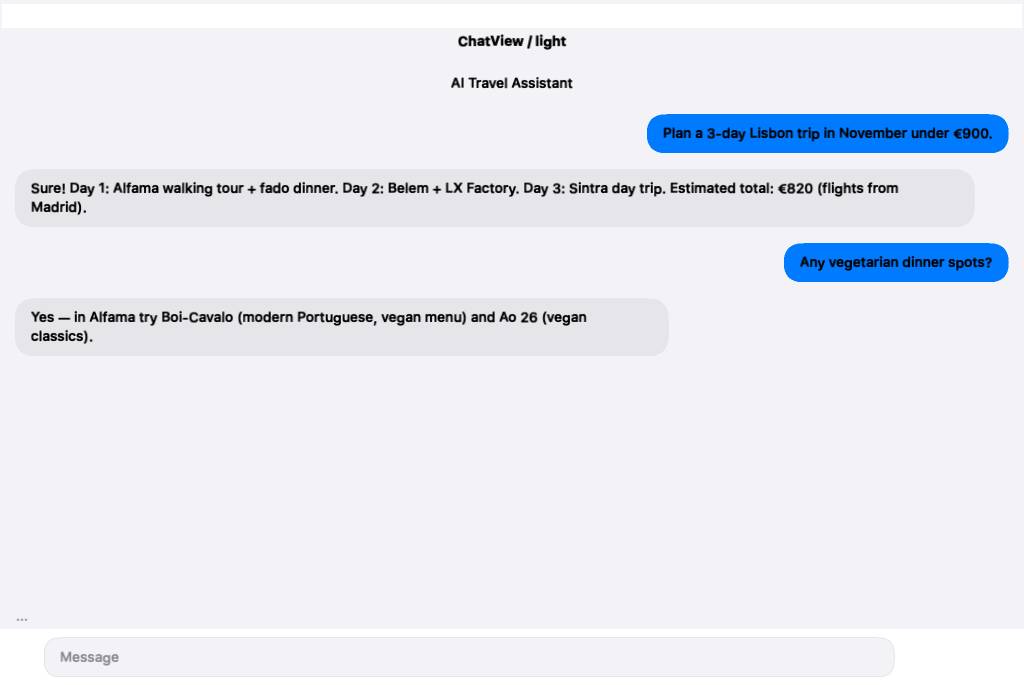

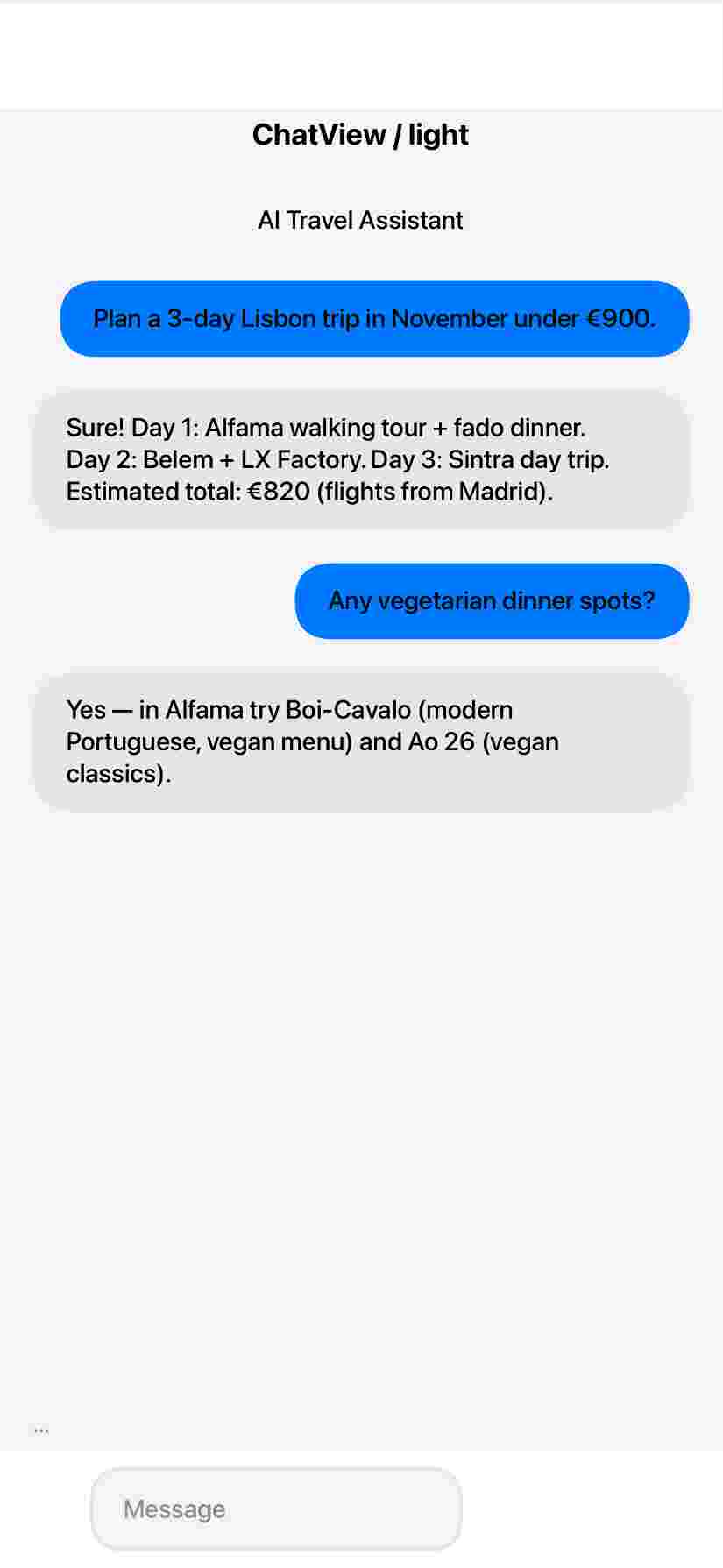

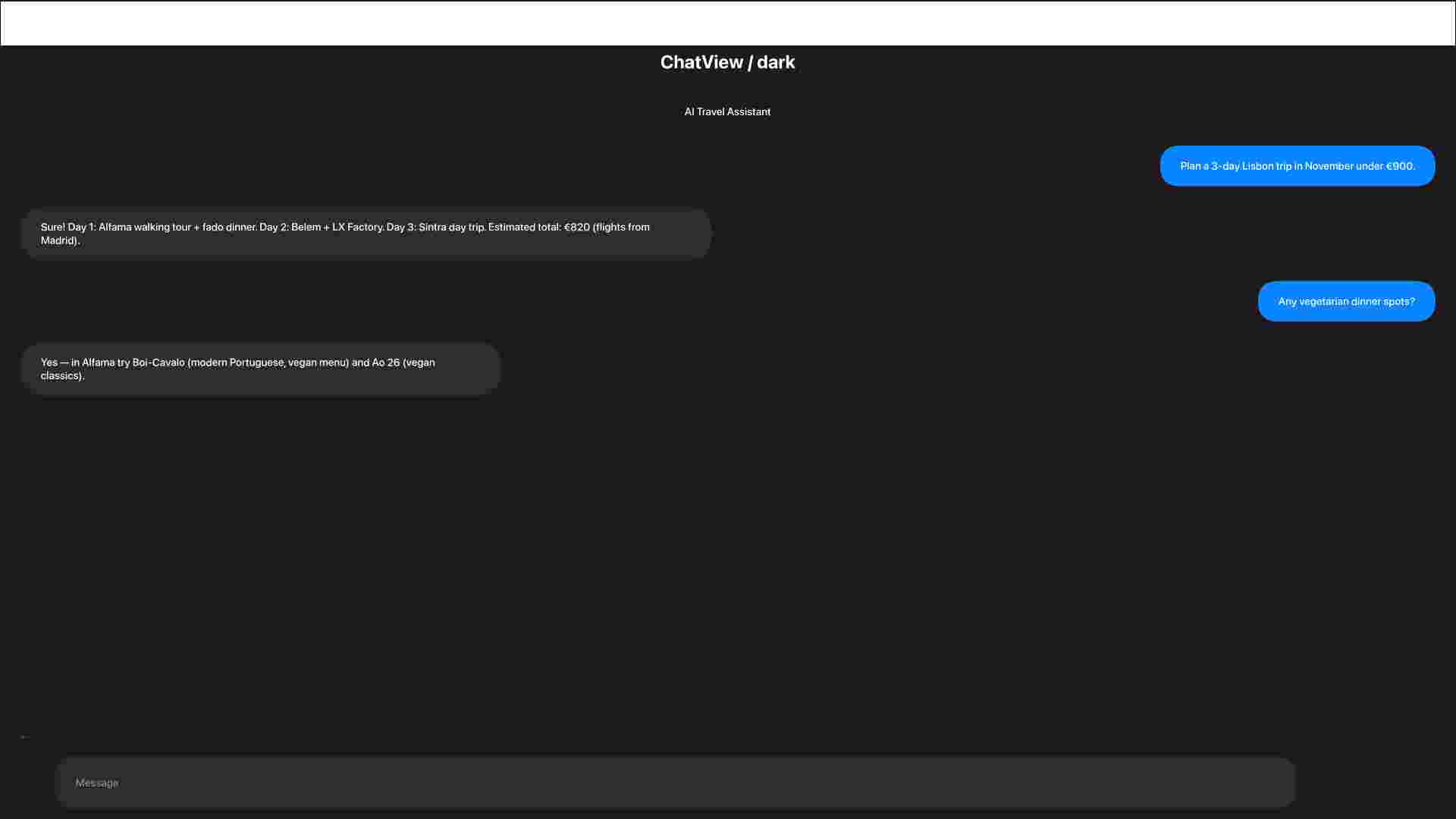

ChatBubbleUser and ChatBubbleAssistant carry "border-radius: 4mm" with "padding: 2mm 3mm", so a single line bubble was previously floored at twice the radius rather than sized by its padding. With the CSS box model that floor is gone and single line bubbles hug their text, which the ChatView screenshot suites picked up on every platform. Multi line bubbles were always taller than the floor and are unaffected. Raising the vertical padding to 3mm keeps the roomy bubble as a stated design choice instead of a side effect of the corner radius. The ChatView goldens still move on every platform and are re-seeded from the CI artifacts in a follow-up commit. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
Downloading the emulator-screenshot artifact and diffing it against the committed golden shows the real impact of the CSS box model on ChatView: the single line bubble goes from 50px to 49px and the multi line bubbles are byte identical. The 8mm floor was only just binding. Raising the vertical padding to 3mm would have added about 12.5px to EVERY bubble at this density, including the multi line ones that were never floored, so it would have moved the design far more than the 1px it was meant to compensate for. Keeping "padding: 2mm 3mm" is what actually preserves the current look. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
|
Compared 217 screenshots: 217 matched. |
iOS Metal screenshot updatesCompared 149 screenshots: 147 matched, 2 updated.
Benchmark Results
Build and Run Timing
Detailed Performance Metrics
|
iOS screenshot updatesCompared 143 screenshots: 141 matched, 2 updated.
Benchmark Results
Build and Run Timing
Detailed Performance Metrics
|
Apple TV (tvOS / Metal)Compared 144 screenshots: 142 matched, 2 updated.
|

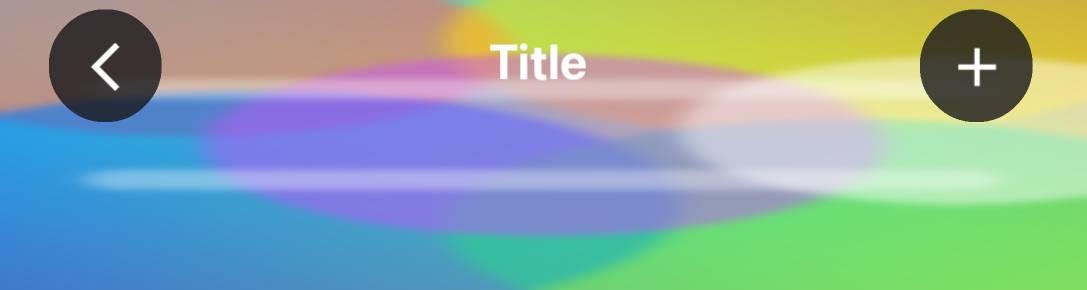

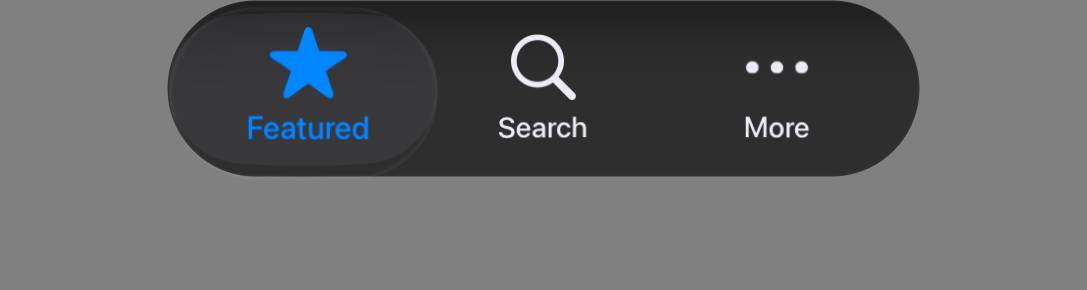

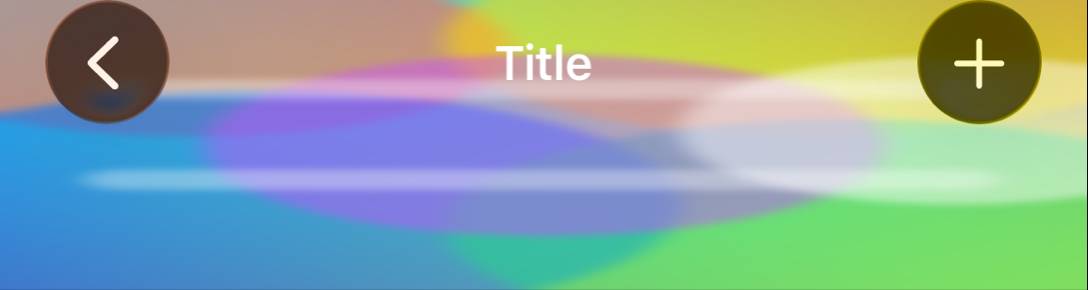

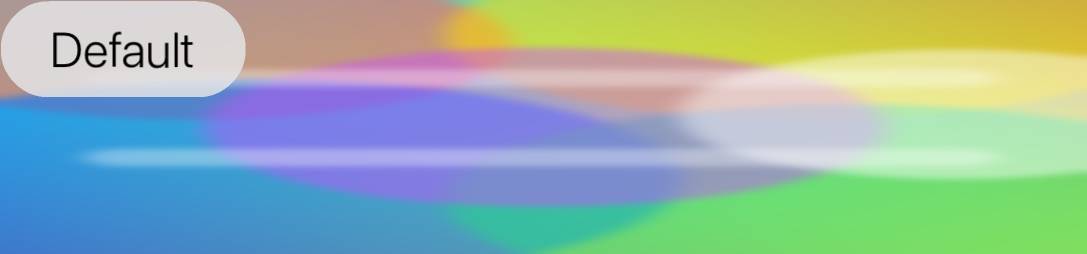

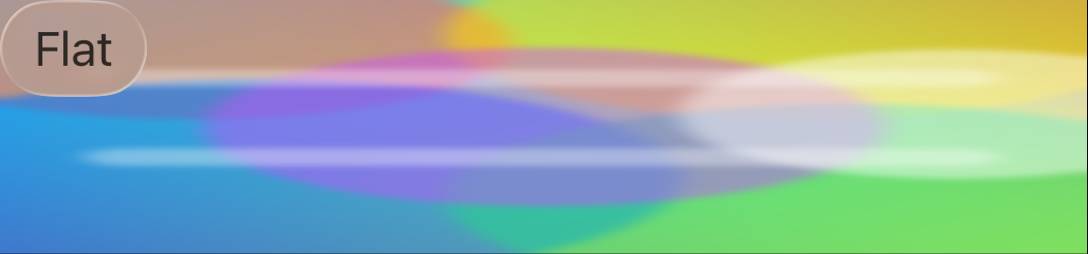

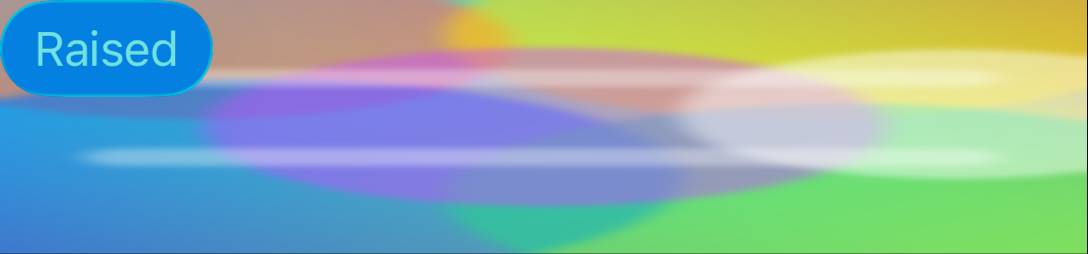

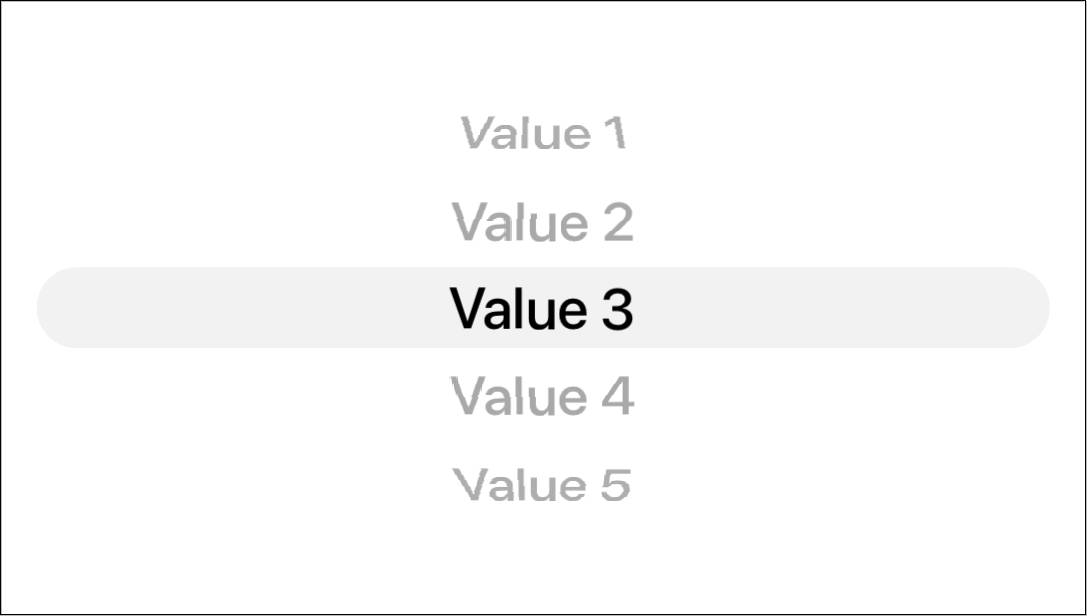

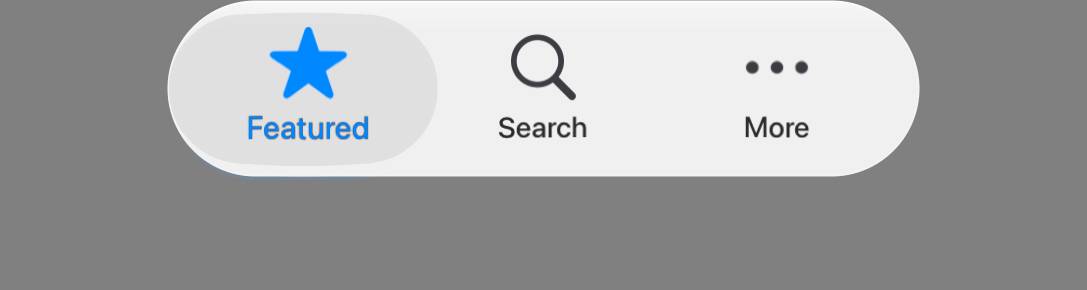

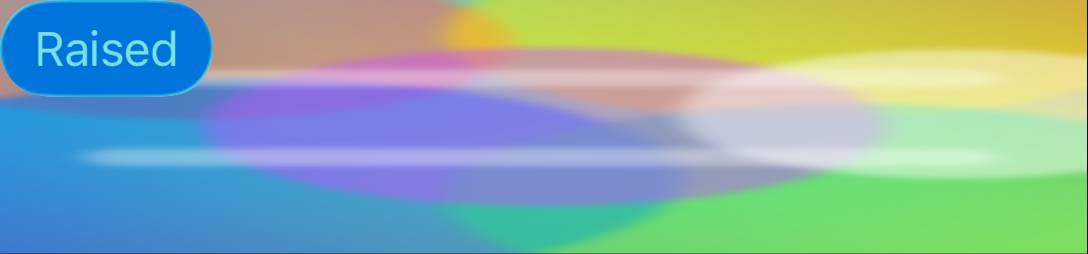

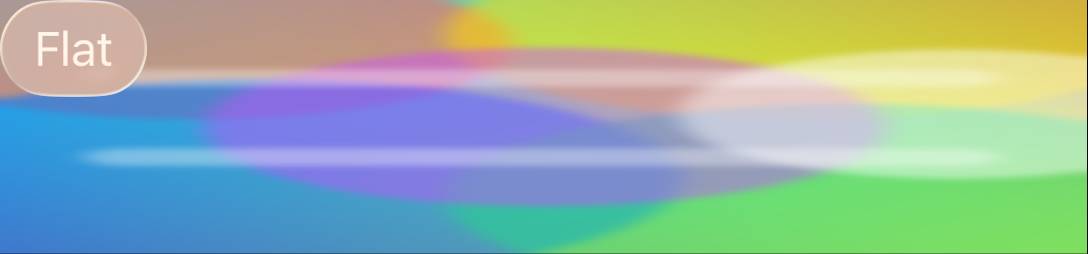

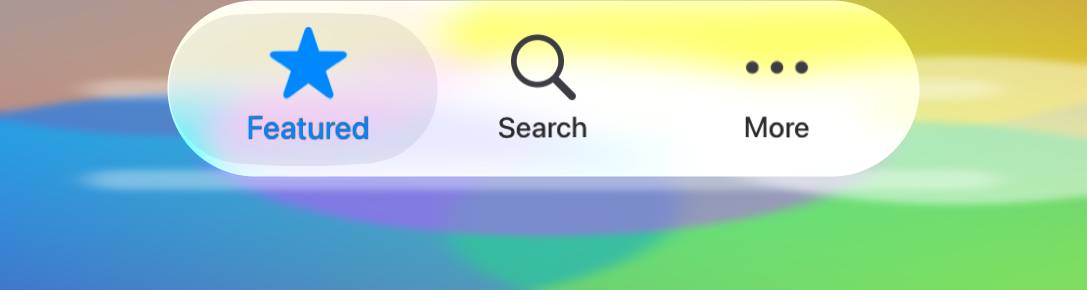

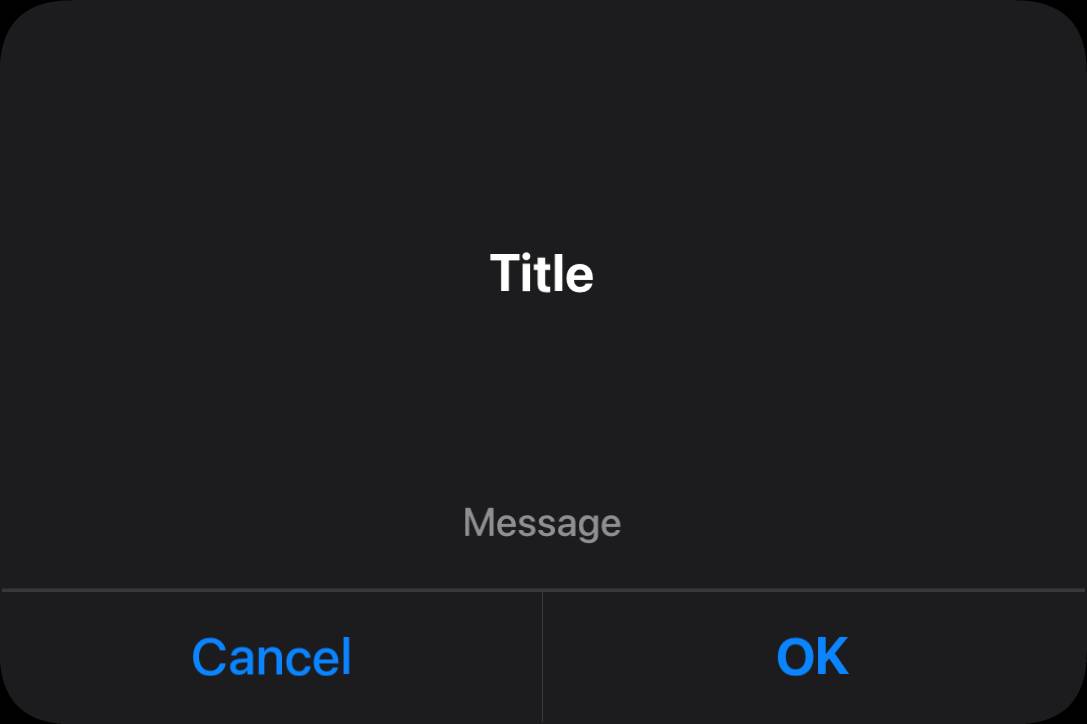

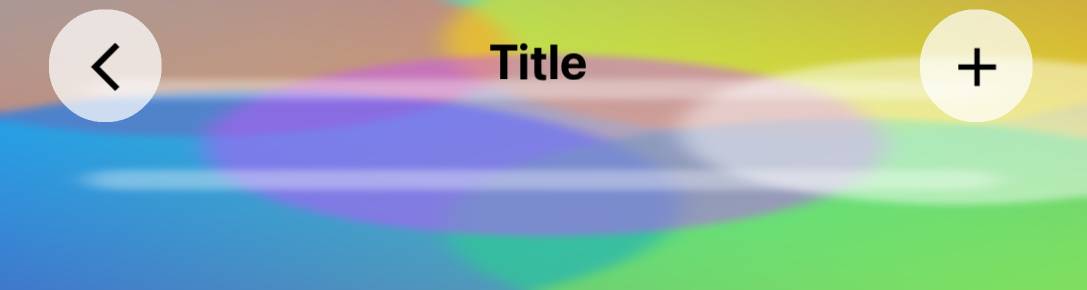

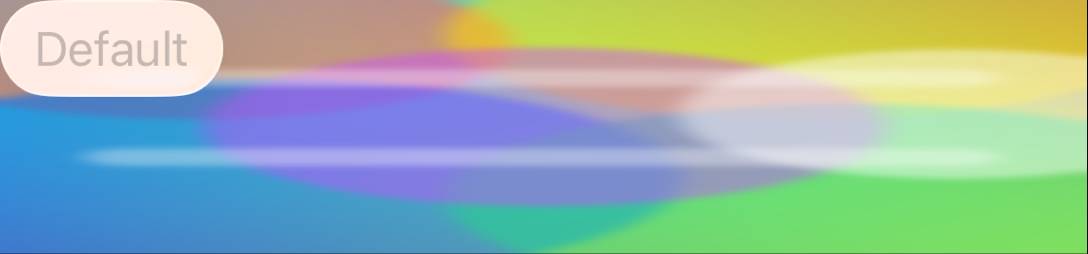

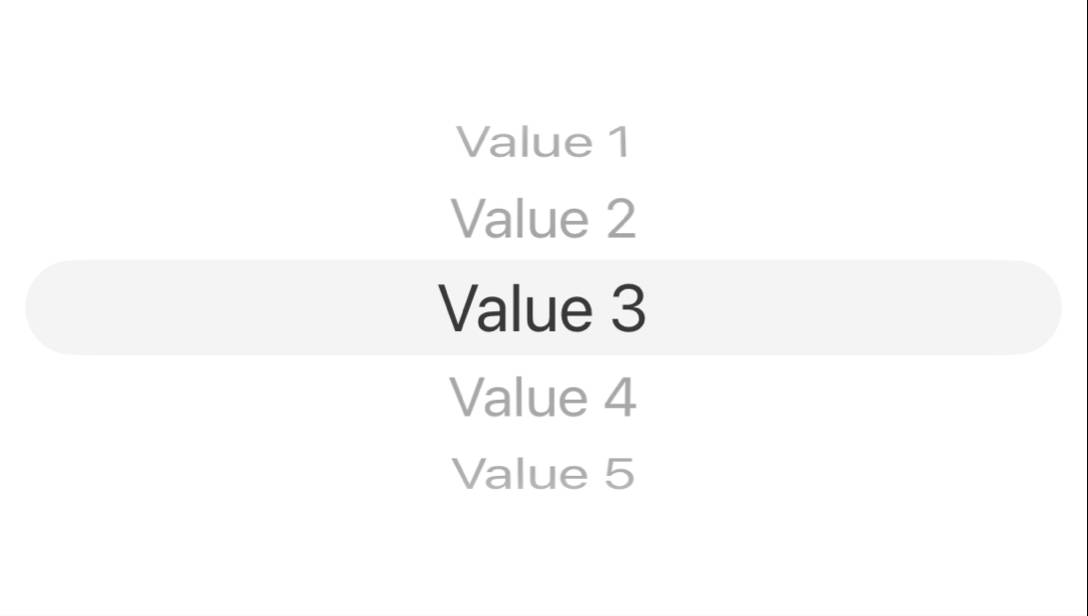

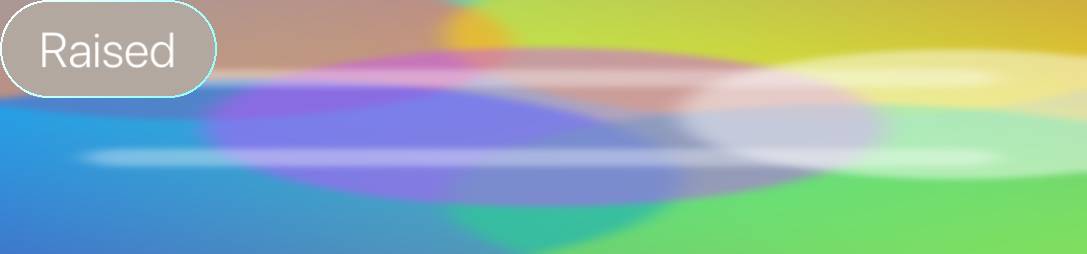

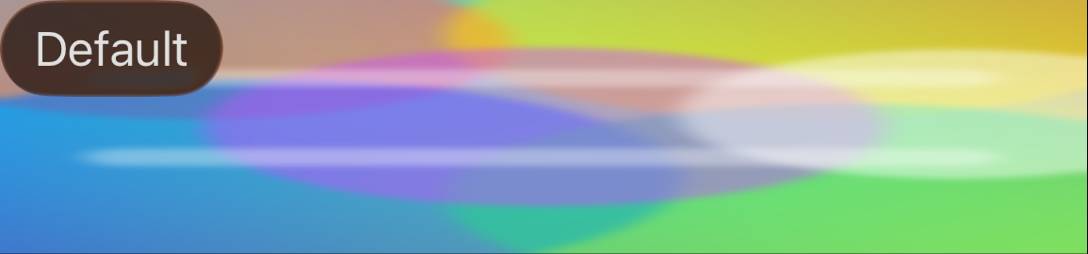

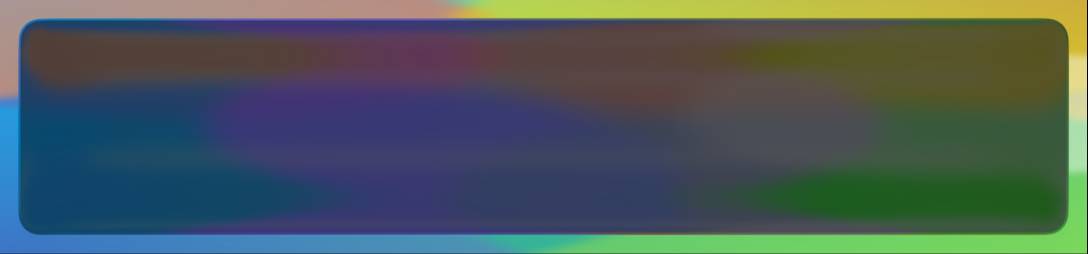

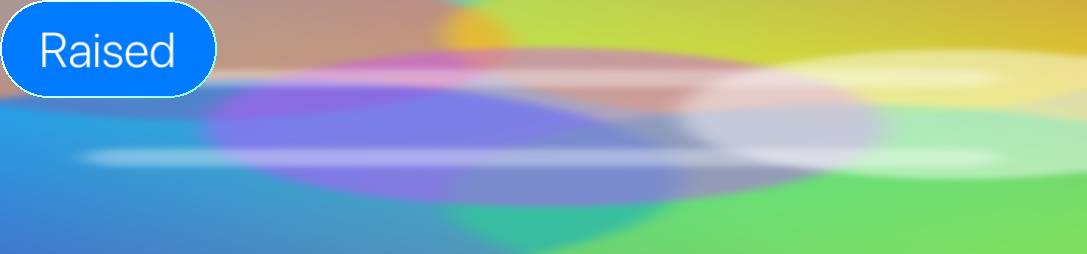

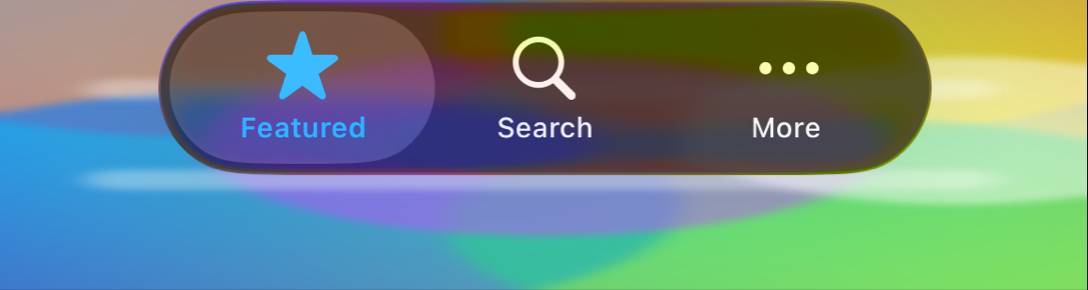

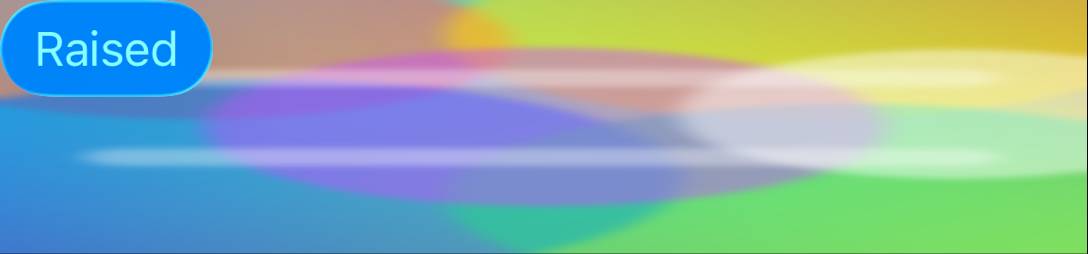

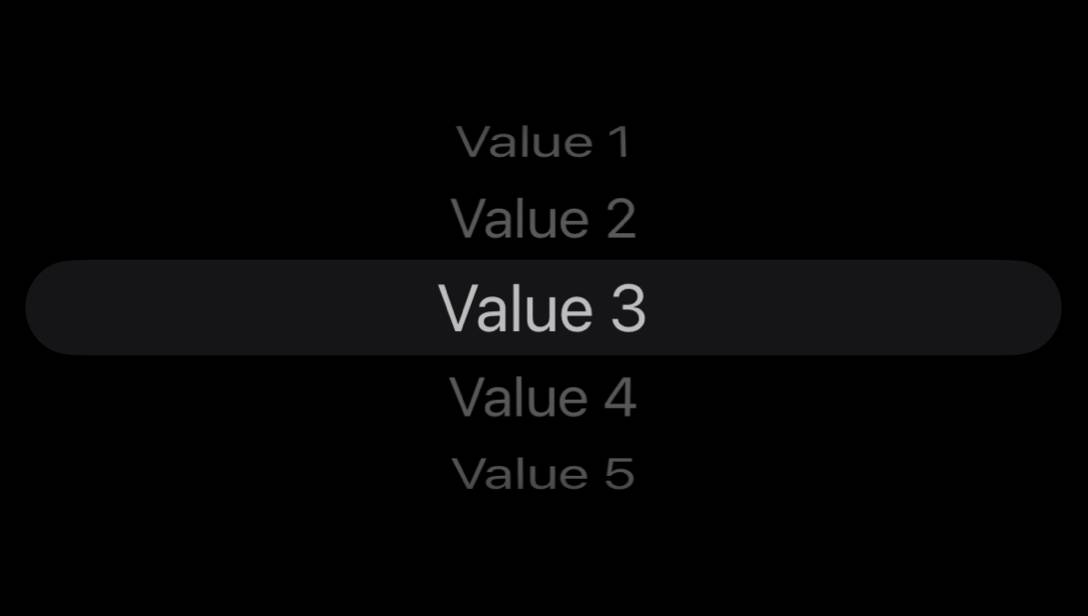

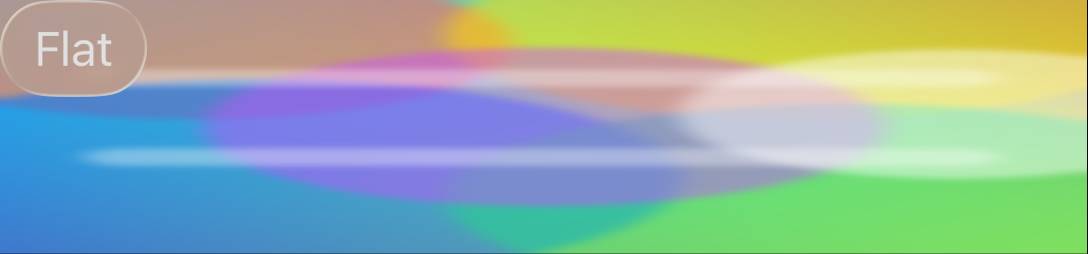

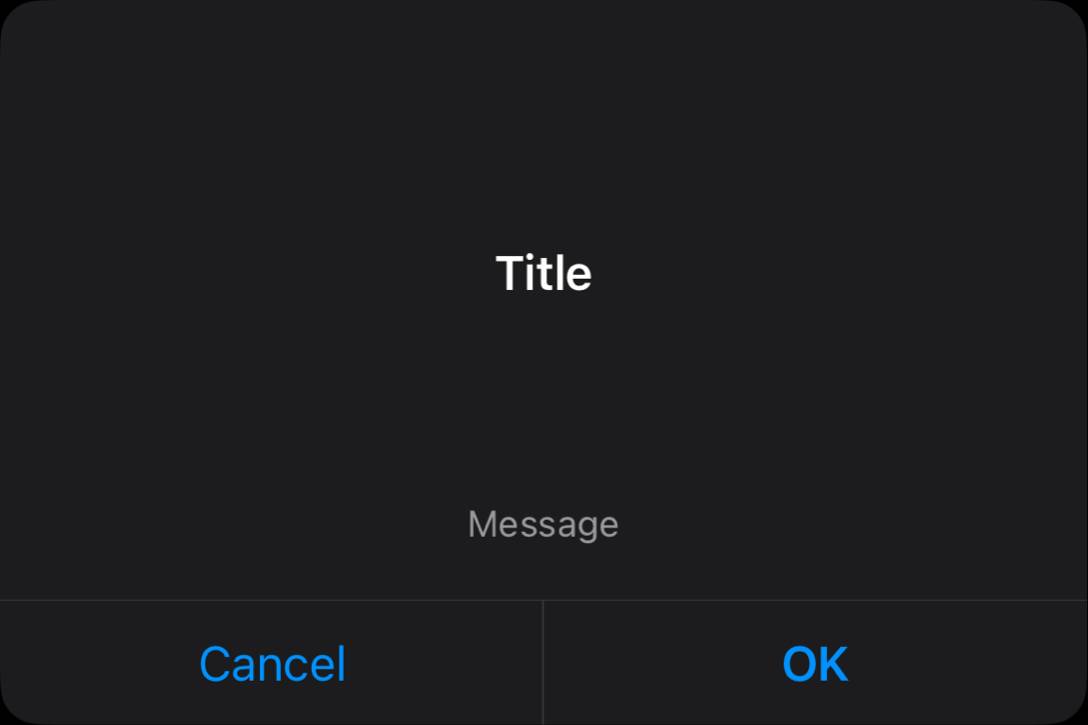

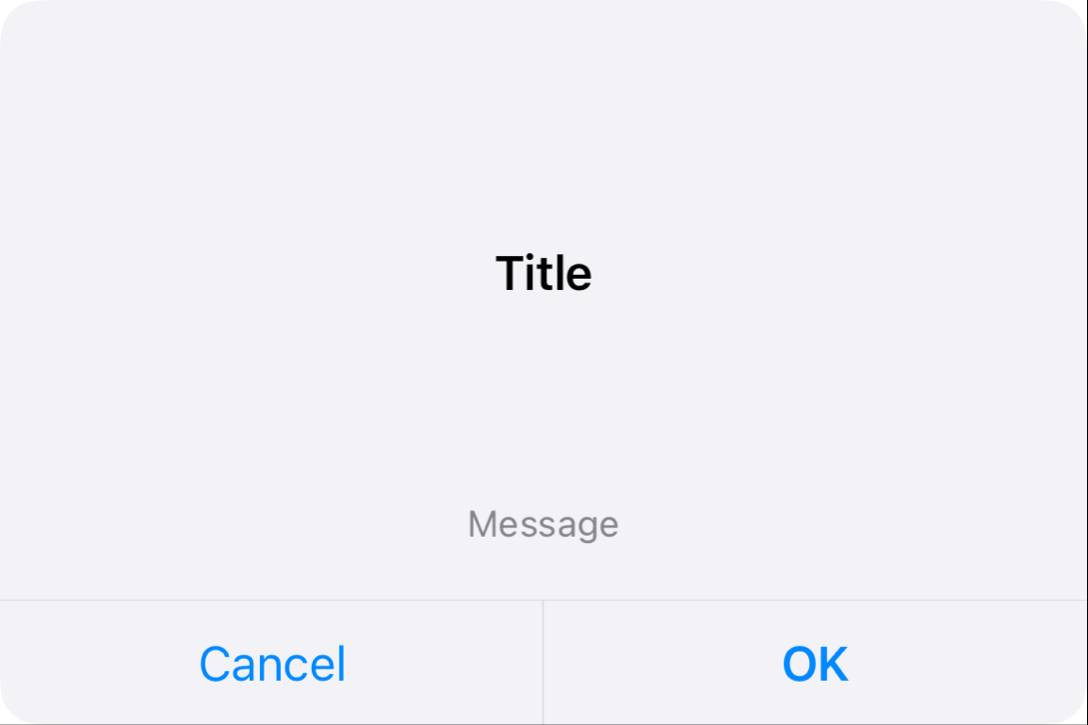

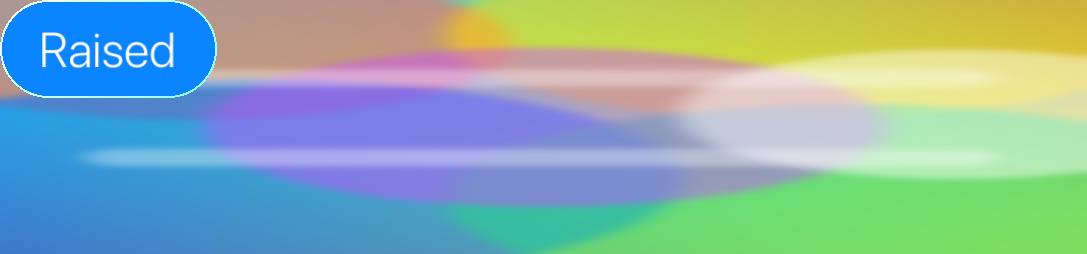

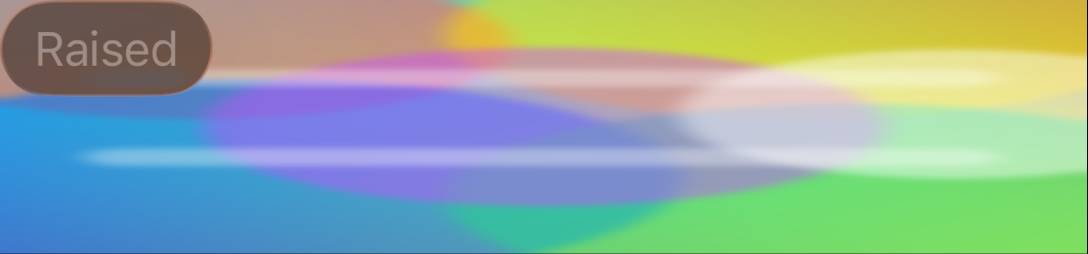

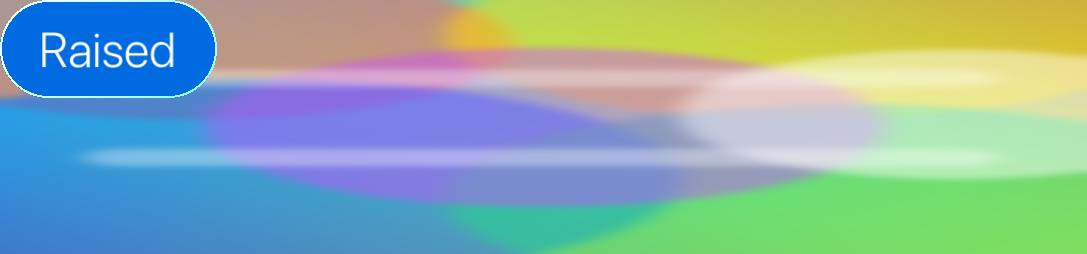

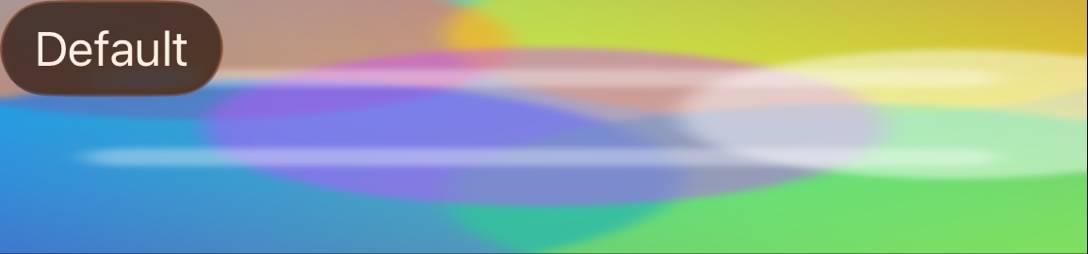

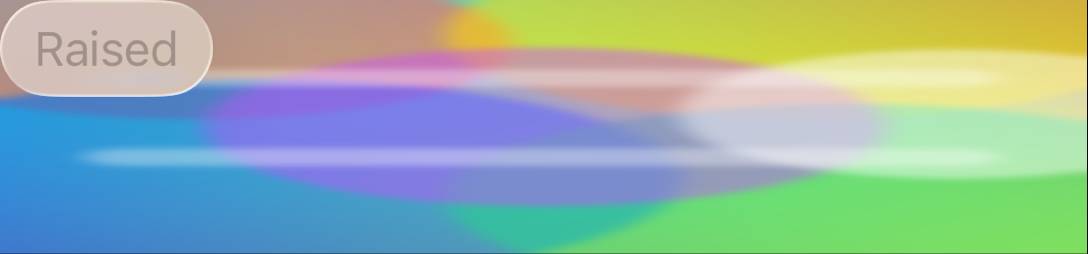

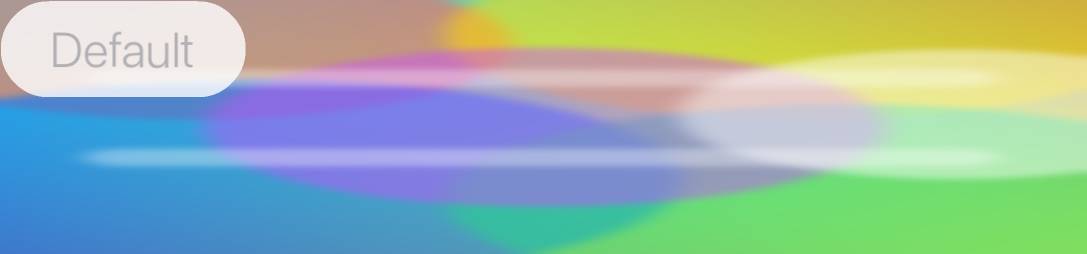

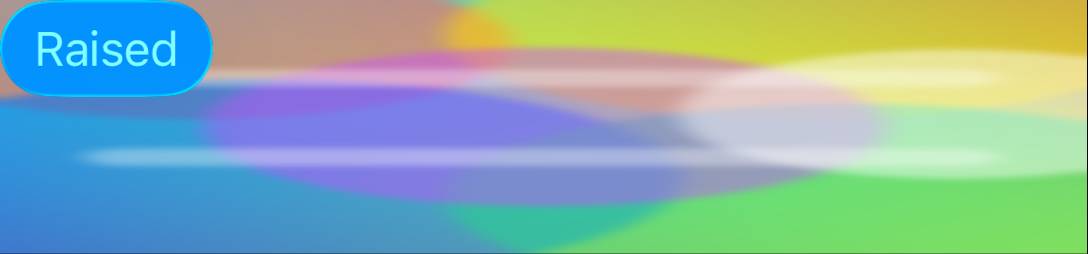

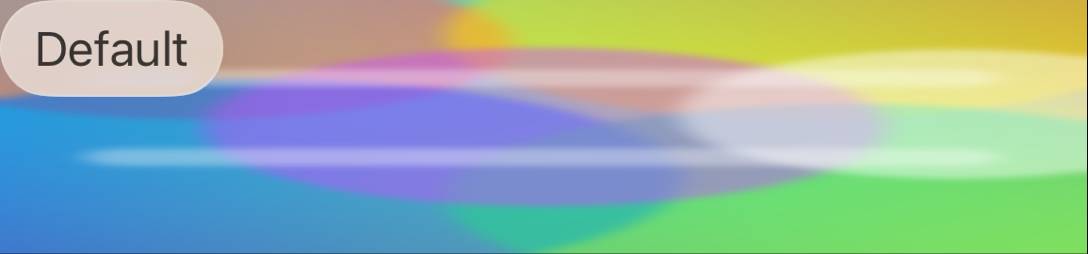

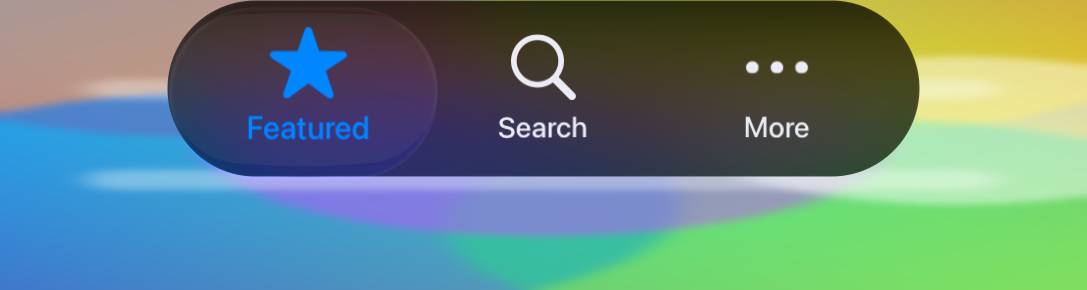

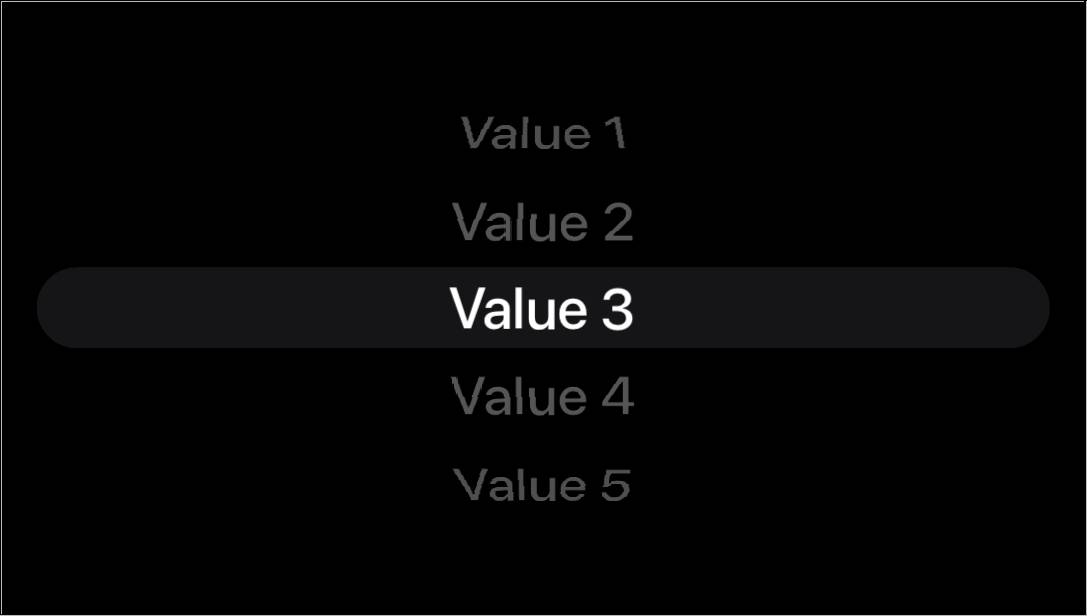

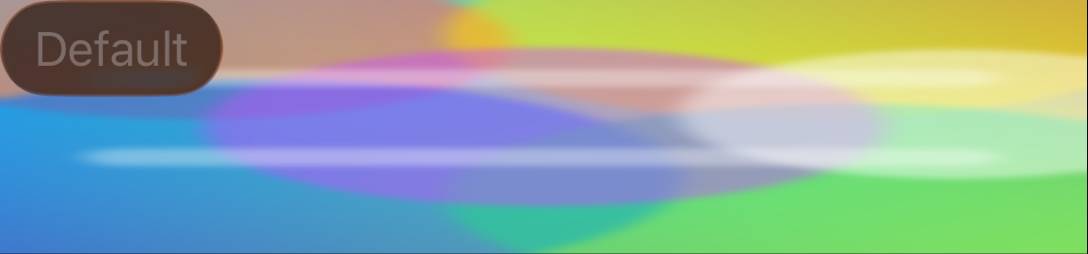

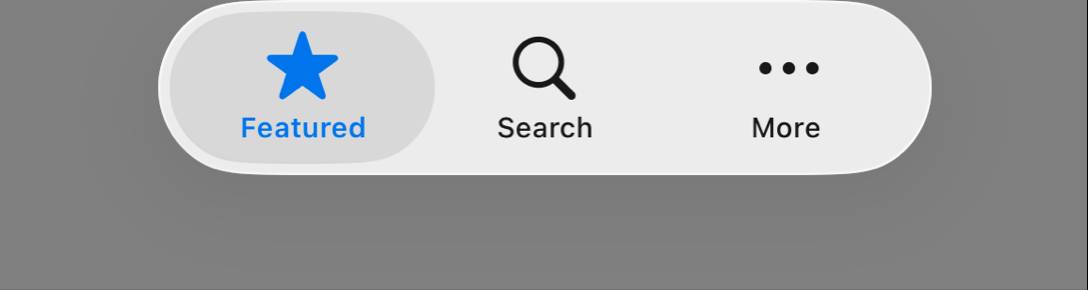

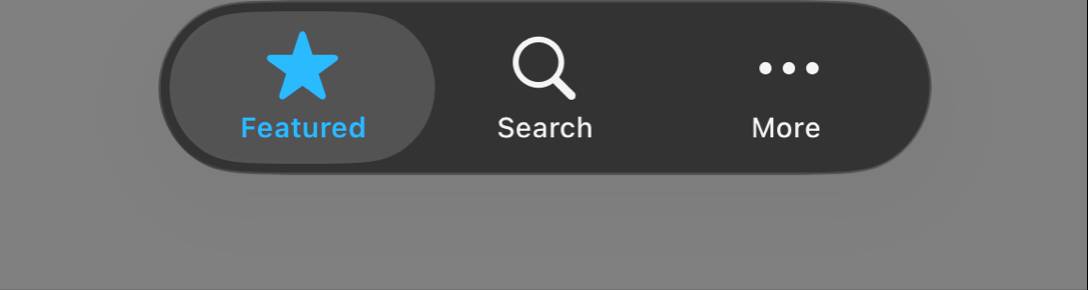

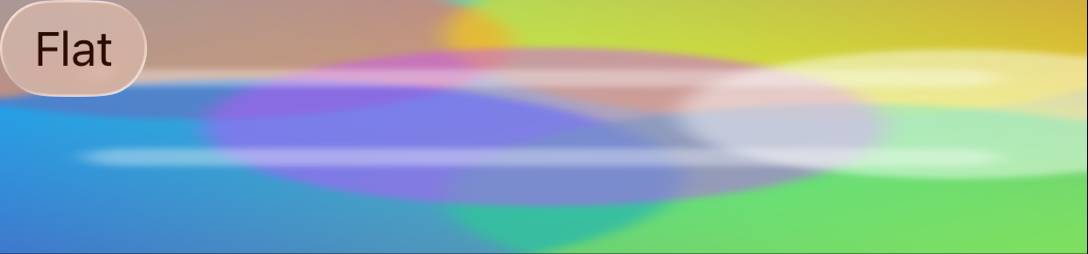

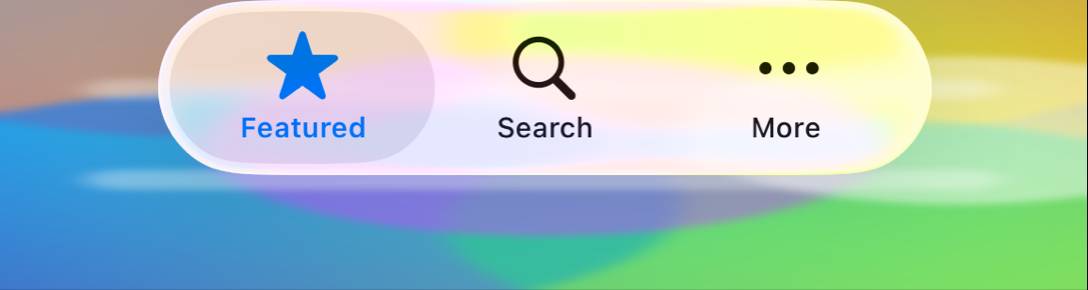

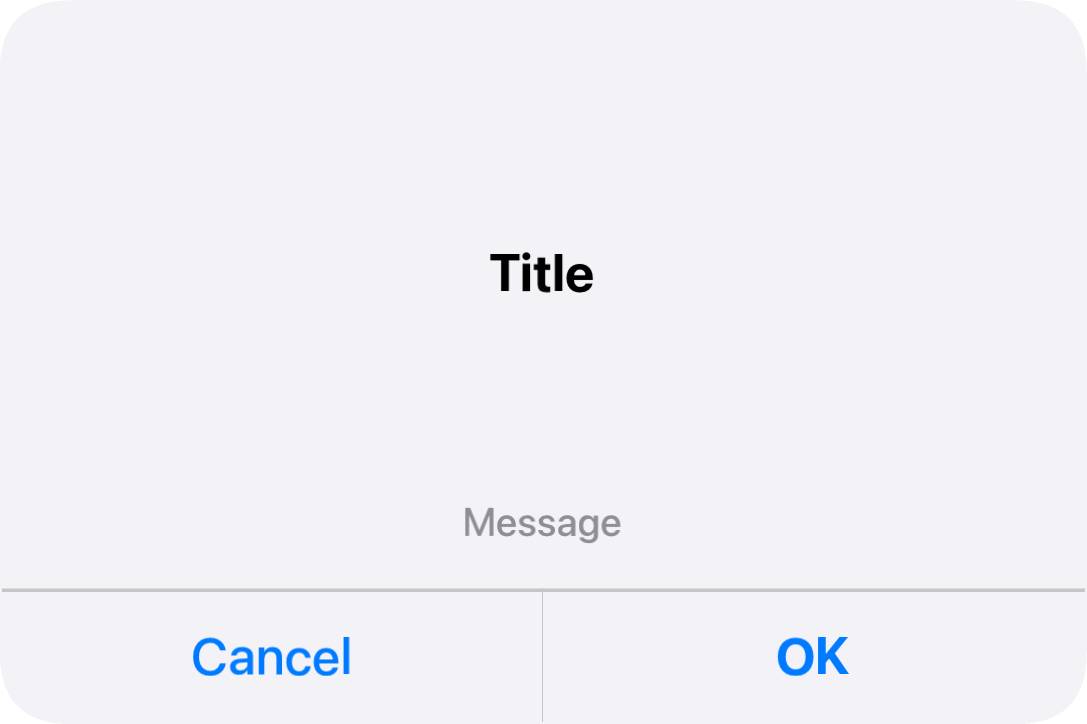

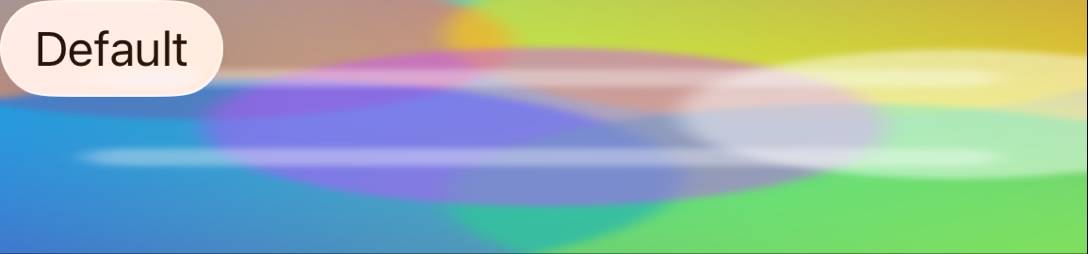

Native fidelity (iOS Modern, Metal)68 pairs compared -- median 95.0%, worst 83.5% ( Distribution --
